nach ISO 5436-1
für elektrische Tastschnittgeräte
zur Messung der Oberflächenrauheit
nach dem Tastschnittverfahren
(DIN 4772)
sowie für optisch antastende Oberflächenmessgeräte
Bezeichnung |
ISO-Typ 5436-01
|
Ausführung |
Baureihe
|
Techn. Daten | Bild | Produktvarianten / Angebot |
Kontakt
|
Tastspitzen-Prüfnormal |
Typ B
|
je 3 x 3 Kegelwinkel mit
70°, 90° und 120° |

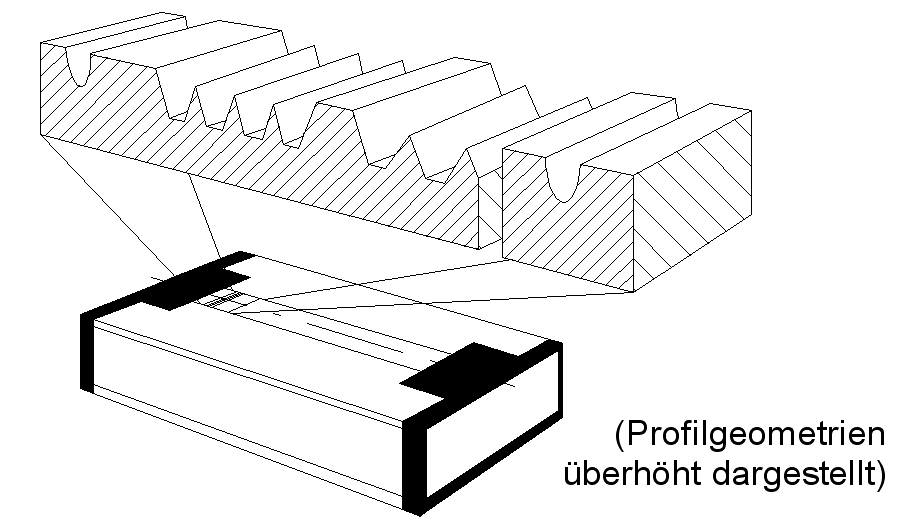

KNT 4050/01
|
Blatt 1.3 |
![]() |
Blatt 10.1 |
|
Tiefen-Einstellnormale
|
Typ A
|
mit rundem Rillengrund

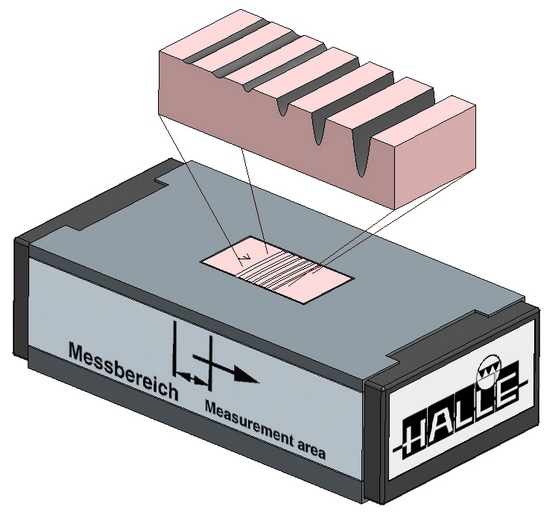

(6 Rillen und 3 Rillen) |
KNT 4060/03
|
Blatt 8.1 |
![]() |
Blatt 18.1 |
|
Tiefen-Einstellnormale
|
Typ A
|

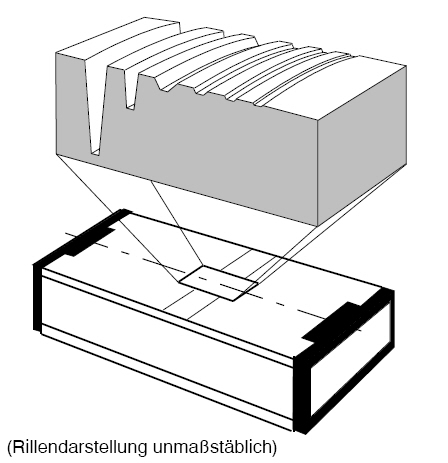

mit planem Rillengrund |
KNT 4080/03
|
Blatt 1.5 |
![]() |
Blatt 11.5 |
|
Raunormale
|
Typ D
|

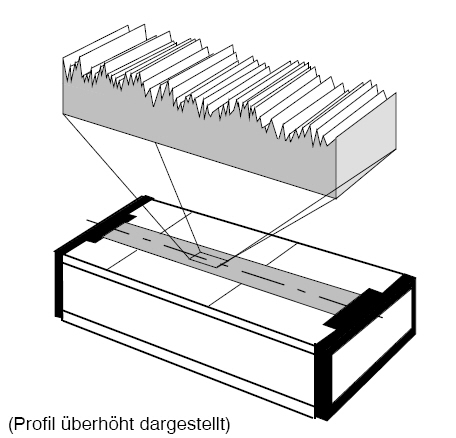

Standard |
KNT 4058/01
|
Blatt 2.0 u. 2.1.1 |
![]() |
Blatt 12.1 u. 12.2 |
|
Raunormale
|
Typ D
|

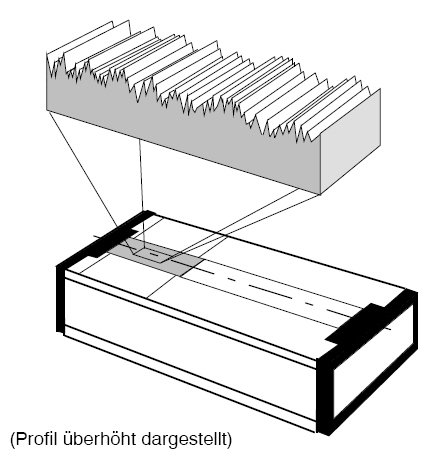

preisgünstige Ausführung |
KNT 4058/03
|
Blatt 2.0 u. 3.1 |
![]() |
Blatt 13.1 u. 13.2 |
|
Raunormale
|
Typ D
|

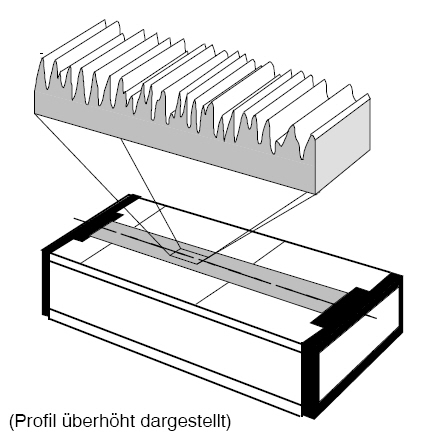

für Feinblechoberflächen |
KNT 4058/02
|
Blatt 2.0, 4.1 u. 4.2 |
![]() |
Blatt 14.1 |
|
Raunormale
|
Typ D
|

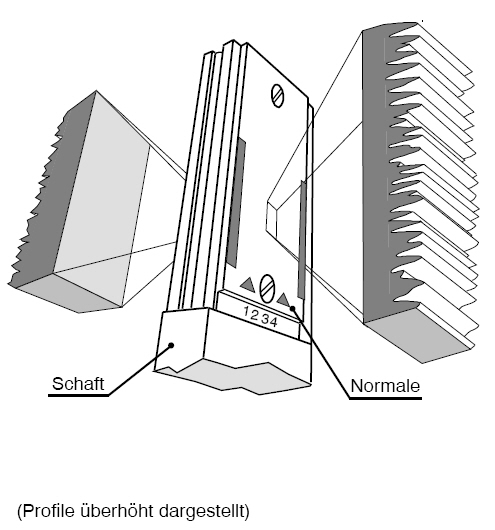

für Blechprobenmessplatz (für 2+4 Zweikufentaster) |
KNT 2058/05
|
Blatt 2.0, 5.1 u. 5.2 |
![]() |
Blatt 15.1 |
|
Raunormale
|
Typ D
|

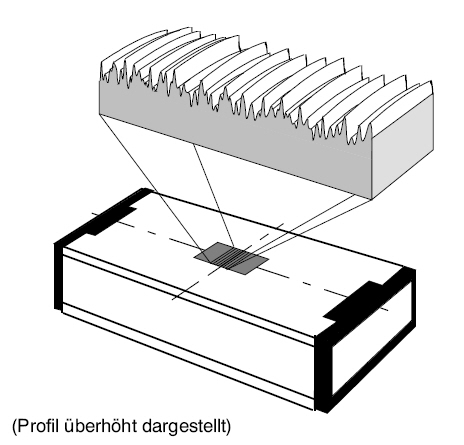

superfeines Rauheitsprofil |
KNT 4070/03
|
Blatt 2.0, 6.1, 6.2, 6.6 |
![]() |
Blatt 16.2 |
|
Vergleichsnormale für Oberflächenrauheiten
|
-
|
VOR 2090/01
|
Blatt 25.0 |
![]() |
Blatt 25.0 |
|
